Lammination Transformer
POWER TRANSFORMERS
The power transformers are low frequency transformer, the input frequency is 50Hz or 60Hz.
Single 110V AC and dual 110/220V AC primaries are offered as standard. And made up of the UL recognized heat resistant insulation material. They provide high quality and reliability. They are available in either class A(105oC) or class B(130oC) insulation systems.
● FEATURES
Low power loss, high performance. The maximum temperate risen is 60oC, reliable High Pot and insulation easily assembled, etc.
● APPLICATIONS
They enjoy a wide range of applications, such as: Radios, TVs, Cordless teleph-ones stereos and audio equipment, office automation equipment, communication equipment, etc.

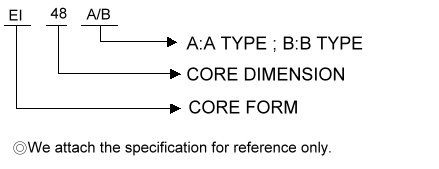

● ORDERING INFORMATION
(Customer's specifications are welcome.)

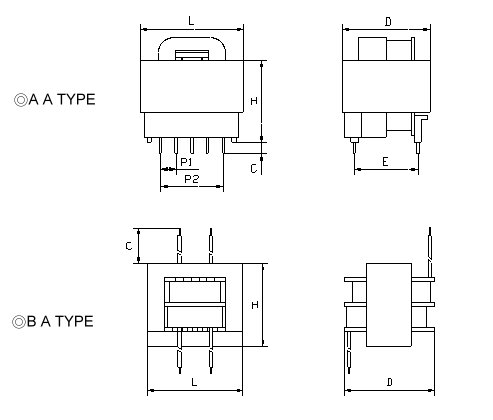

1. DIMENSIONS (UNIT: mm)
2. SPECIFICATION
ITEM | DIMENSIONS | ||||||
L | H | C | D | E | P1 | P2 | |
MAX | MAX | REF | MAX | ( ±0.5 ) | ( ±0.3 ) | ( ±0.5 ) | |
EI28A | 29 | 25 | 4.0 | 33 | 20 | 4 | 28 |
EI28B | 29 | 25 | 50.0 | 28 | |||
EI35A | 36 | 36 | 5.0 | 35 | 22.5 | 5 | 20 |
EI35B | 36 | 31 | 50.0 | 35 | |||
EI41A | 42 | 48 | 4.0 | 42 | 23.5 | 8 | 16 |
EI41B | 42 | 36 | 50.0 | 45 | |||
EI48A | 49 | 54 | 5.5 | 42 | 27.5 | 7.5 | 30 |
EI48B | 49 | 41 | 50.0 | 72 | |||
EI54A | 55 | 62 | 7.0 | 51 | 36 | 7.5 | 37.5 |
EI54B | 55 | 46 | 50.0 | 40 | |||
EI57A | 58 | 61 | 7.0 | 50 | 34.5 | 7.4 | 29.6 |
EI57B | 58 | 49 | 50.0 | 55 | |||
EI66A | 67 | 88 | 5.0 | 63 | 42.5 | 7.5 | 45 |
EI66B | 67 | 56 | 50.0 | 80 |
